16mm–35mm Screw Small Scale Lab Screw Extruder Machine For Universities Institutes
| Place of Origin | China |
| Brand Name | MKPL |
| Certification | ISO9001 |
| Model Number | Experimental Extruder |
35mm Screw lab screw extruder
,Small lab screw extruder
,Universities small scale extruder

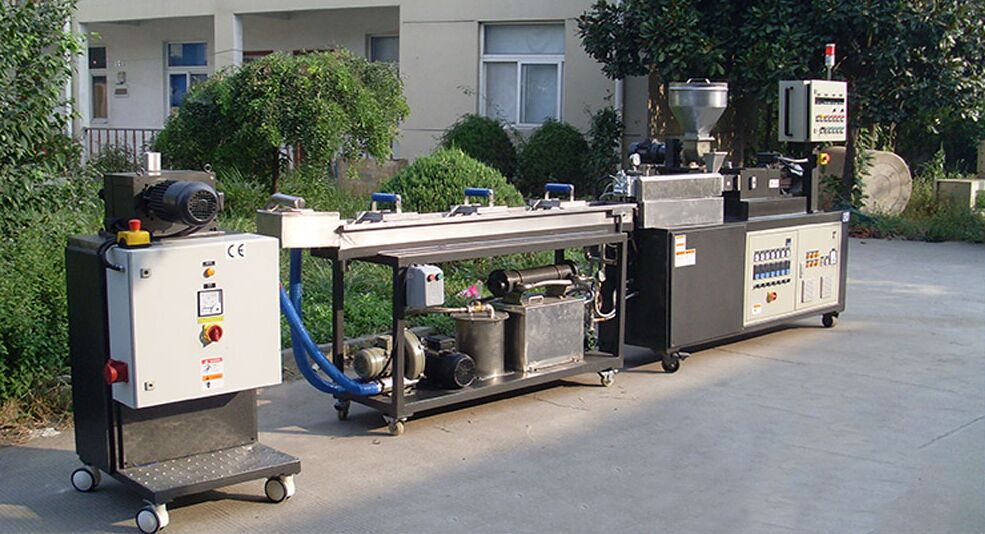

Experimental Extruder
A experimental extruder, also known as a lab extruder, lab twin-screw extruder, or small-scale extrusion machine, is specialized equipment designed for research, material testing, formulation development, and small-batch production. It is widely used in polymer research labs, universities, material R&D centers, compounding laboratories, and pilot-scale manufacturing lines. With precise temperature control, flexible screw configurations, and low material consumption, the experimental extruder is ideal for developing new plastics, masterbatch formulations, additives, biodegradable materials, and engineering polymers.
The lab extruder simulates industrial-scale extrusion processes on a smaller, controlled platform. It allows researchers to evaluate melt behavior, dispersion, mixing quality, color matching, rheology, and polymer reaction performance, helping manufacturers shorten development cycles and accelerate product innovation.
Applications of the Laboratory Extruder
Polymer Formulation Research: PP, PE, ABS, TPU, PA, PC, PET, PLA.
Masterbatch Development: color masterbatch, filler masterbatch, additive concentrates.
Biodegradable Material Testing: PLA, PBAT, PHA, starch-based blends.
Engineering Plastic Compounding: high-performance materials, flame-retardant systems.
Additives & Chemicals: stabilizers, modifiers, compatibilizers, composite materials.
University & R&D Labs: teaching, testing, and process simulation.
Technical Specifications
|
Parameter |
Specification |
|
Extruder Type |
Single-screw / Twin-screw laboratory extruder |
|
Screw Diameter |
16–35 mm |
|
L/D Ratio |
24–40:1 (customizable) |
|
Motor Power |
1.5–15 kW |
|
Output Capacity |
0.5–20 kg/h |
|
Temperature Zones |
4–8 zones with ±1°C accuracy |
|
Feeding System |
Micro feeder / volumetric / gravimetric |
|
Pelletizing Options |
Strand, air-cooling, water-ring, die-face cutting |
|
Control System |
PLC + touchscreen + data recording |
These specifications allow the laboratory extruder to simulate full-scale production while maintaining low material usage and excellent repeatability.
Key Advantages
Extremely precise temperature and torque control for accurate R&D testing.
Low material consumption, ideal for expensive polymers and additives.
Flexible screw configuration for different mixing, shearing, and reaction requirements.
Easy cleaning and fast material changeover for multi-formula testing.
Compact design suitable for laboratories and pilot production units.
Data export & recording for academic research and process optimization.
FAQ
Q1: What materials can a laboratory extruder handle?
Almost all thermoplastics, biodegradable materials, elastomers, additives, and laboratory-grade formulations.
Q2: Can the screw design be customized?
Yes. Screw elements can be rearranged to suit mixing, dispersing, or reactive extrusion needs.
Q3: Is training provided?
We offer both onsite and remote training for lab personnel and research teams.
After-Sales Service
We provide installation support, operator training, spare parts, video tutorials, remote technical diagnostics, and lifetime maintenance assistance to ensure your laboratory extruder operates with maximum accuracy and reliability.
Contact Us at Any Time
